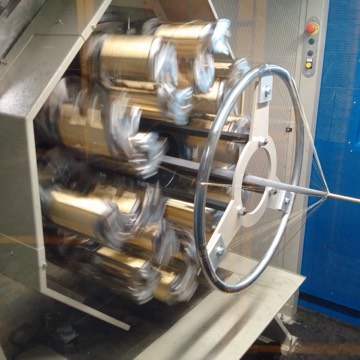

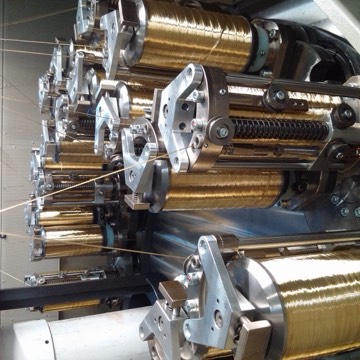

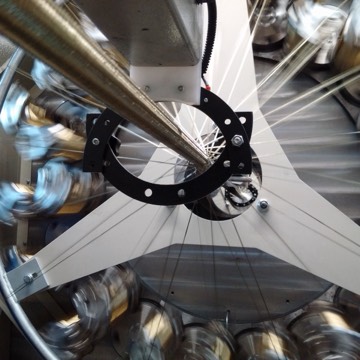

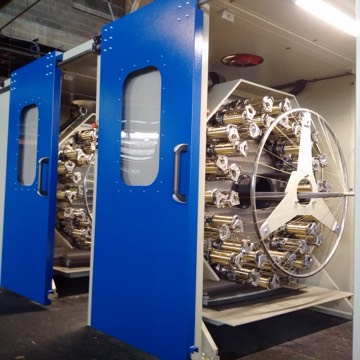

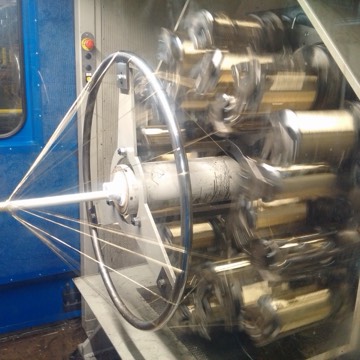

Braiding Machines

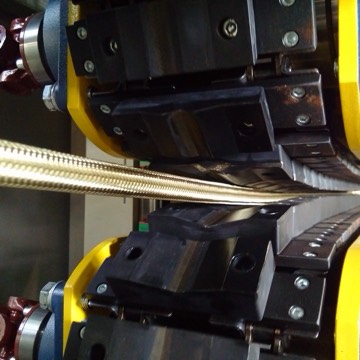

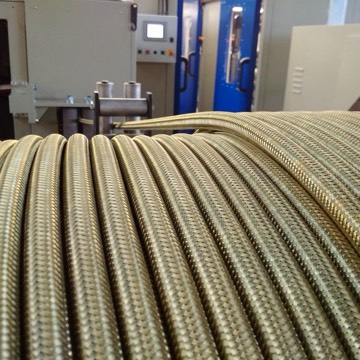

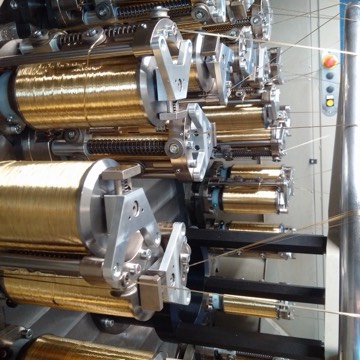

Cutting-edge braiders with 24 to 64 carriers for medium and high pressure hoses, with steel wire or textile reinforcement. The horngears drive the shuttles, while a dedicated track sensor controls their direction. A PLC-controlled, synchronised servo drive ensures a precise braid, and the haul-off, with automatic opening and closing and clamping force detection, keeps the process smooth.
Technical Features

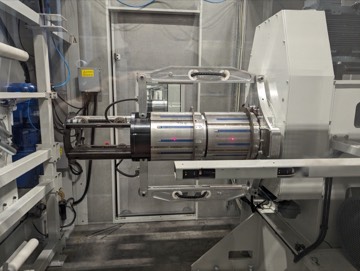

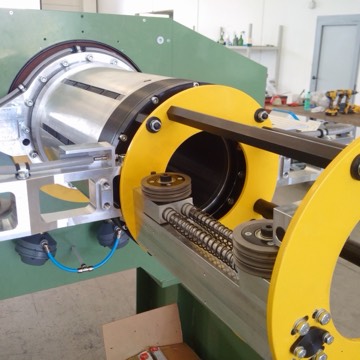

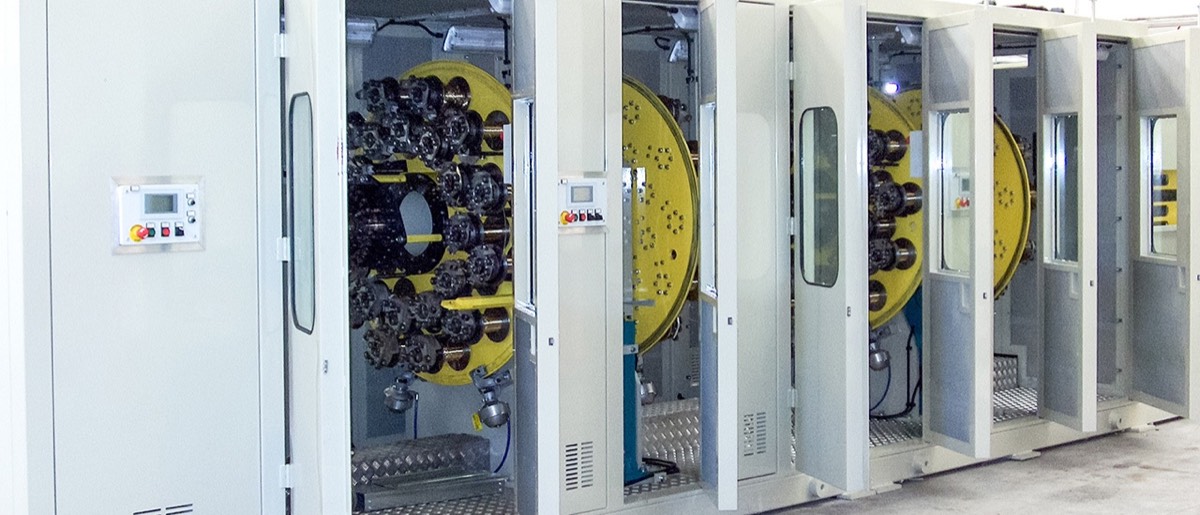

Multi-Wire Spiraling Machines

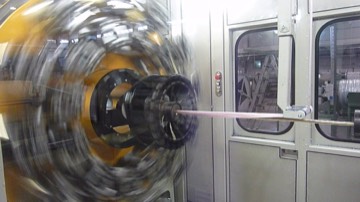

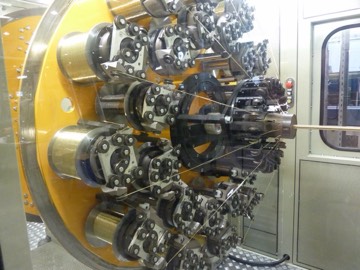

Multi-wire spiraling machines for high and extremely high pressure hoses on flexible or rigid mandrels. The design is based on compact decks with a limited number of carriers, each loaded with several wires. This makes the process very reliable and keeps hose quality stable, even at larger diameters.

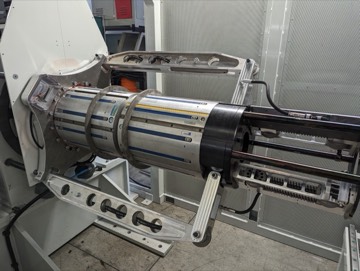

A special brake system on each carrier and a synchronous servo drive between the spiraling decks and the traction device lay the wires at constant tension and with high precision. A dedicated wire guide and preformer tooling for each diameter give a consistent curl.
Technical Features

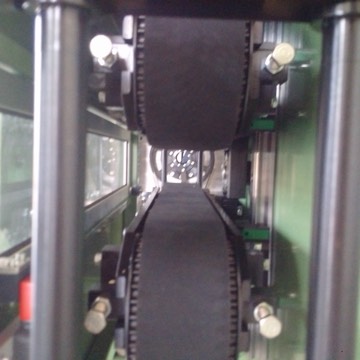

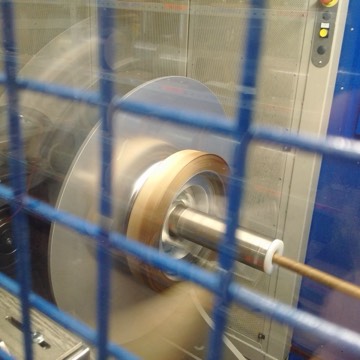

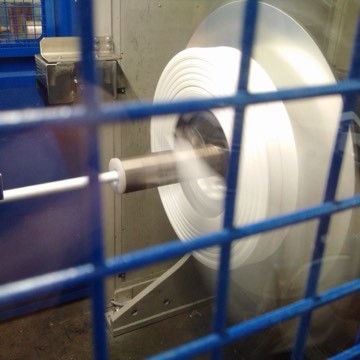

Wrapping & Unwrapping Machines

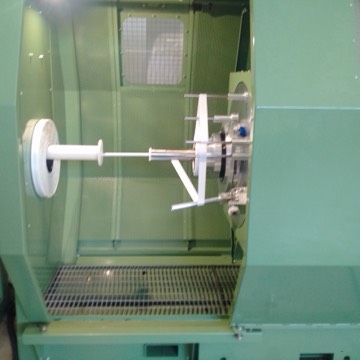

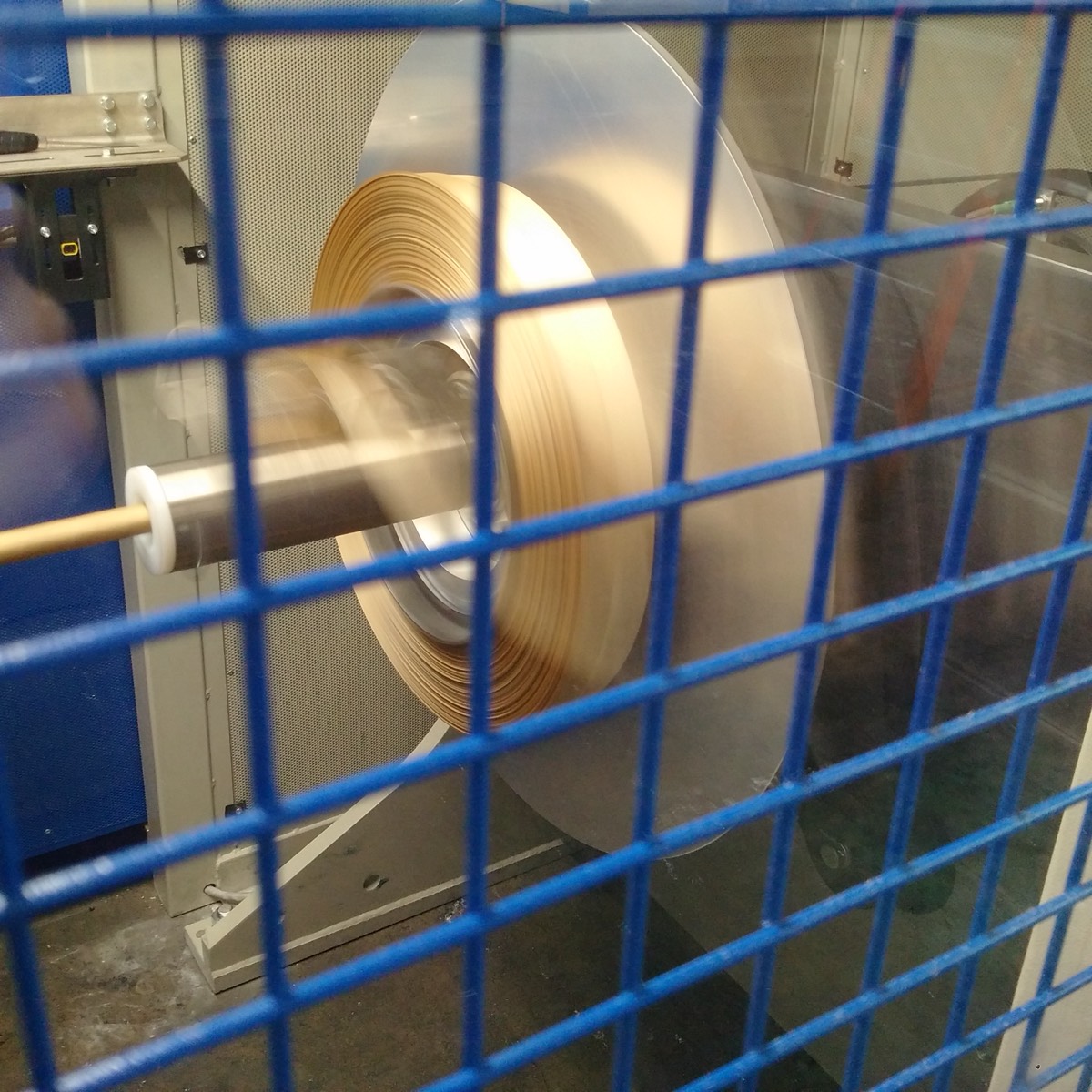

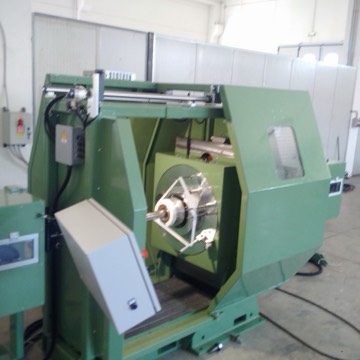

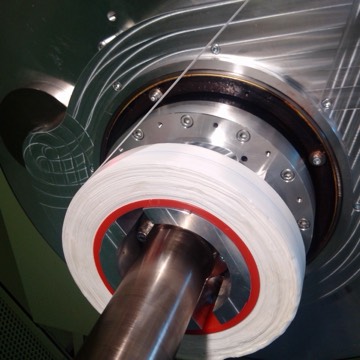

Wrapping and unwrapping machines that apply and remove the curing tape, in concentric or eccentric design. A synchronous servo drive with automatic pitch control ensures precise wrapping, even at very low tensioning forces.
Technical Features

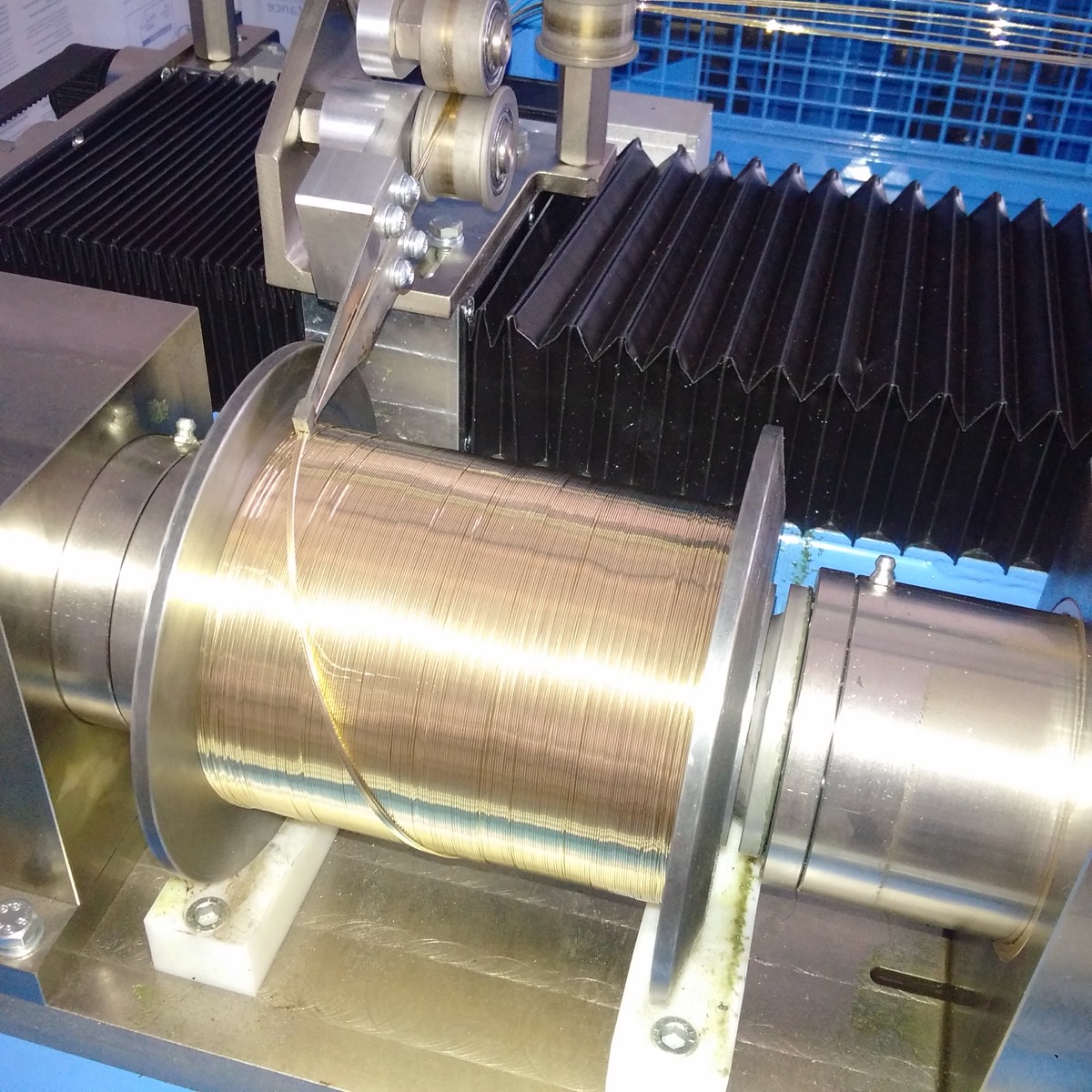

Bobbin Winders

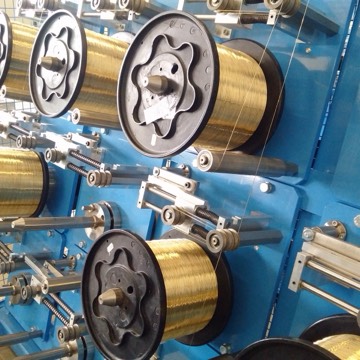

RKN bobbin winders spool wire with the precision that high-quality braiding and spiraling require. Constant wire tension keeps the catenary uniform. Machines with electronic brakes have closed-loop load cells on each creel position; mechanical versions use brake cams. A synchronised servo drive with software control keeps spooling precise.
Technical Features

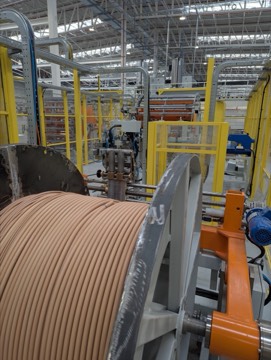

Mandrel Blow-Out & Proof Test Cells

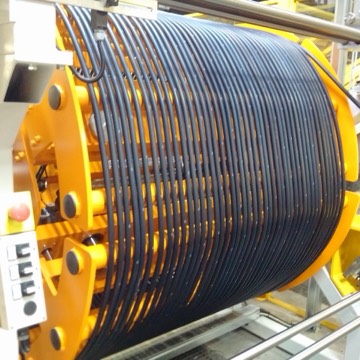

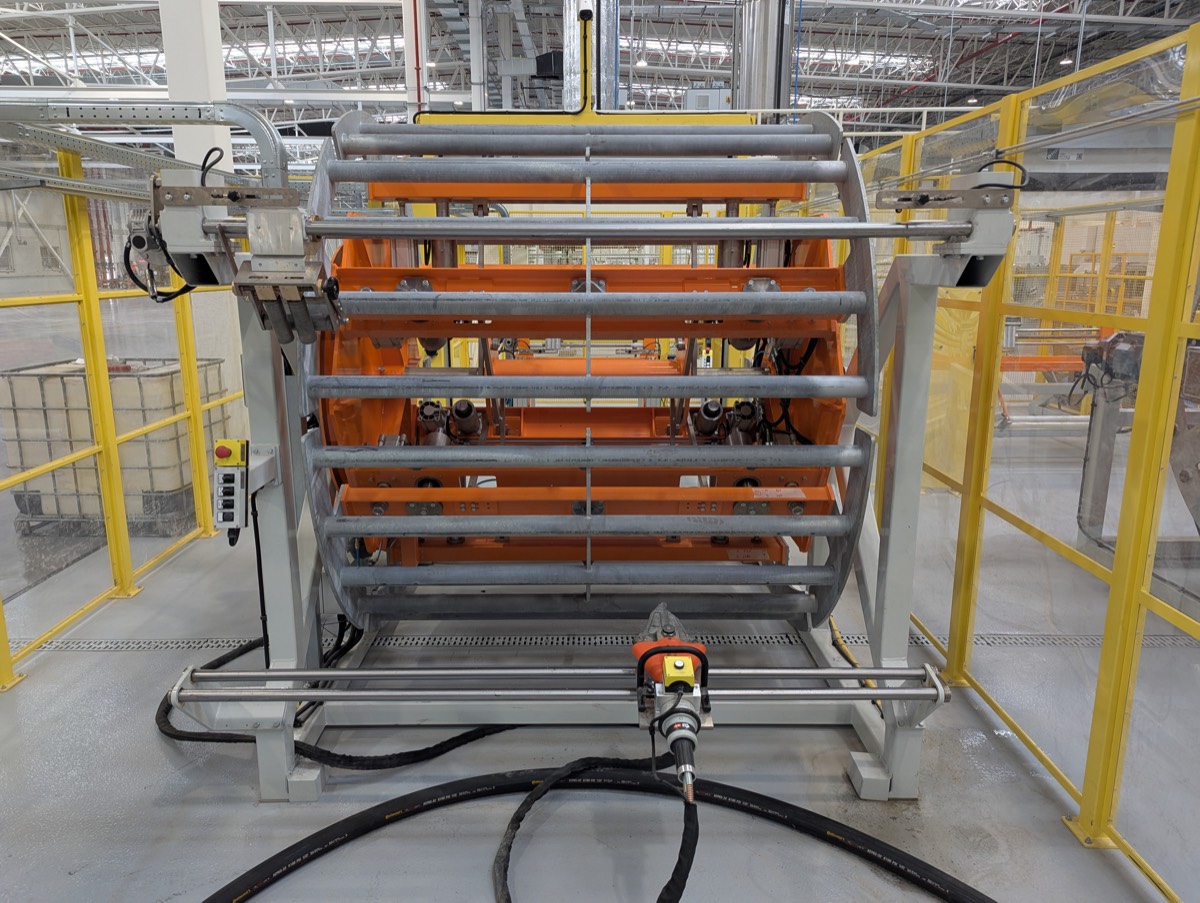

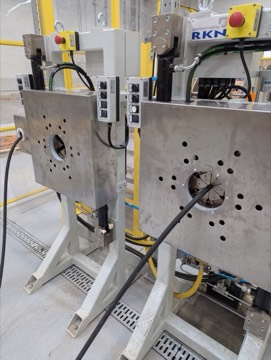

Complete equipment for blowing out flexible mandrels and proof testing hoses. An expandable coiler eases mandrel detachment, while dedicated clamps hold the hose ends securely. The proof test uses a high-pressure plunger pump unit, combined with an air pump for very high test pressures.
The system delivers fast, reliable mandrel blow-out and a precise multi-phase proof test. Dedicated software controls each phase of the cycle, with recipe management, graphs and an automatic test report. Each cell is designed to the customer's layout.
Technical Features
Frequently Asked Questions
What machines does RKN build for hydraulic hose production?
RKN builds braiders with 24 to 64 carriers, multi-wire spiraling machines with 2, 4 or 6 decks, wrapping and unwrapping machines for curing tape, bobbin winders, and mandrel blow-out and proof test cells. Every machine is built to the customer's specification.
Which hoses can RKN spiraling machines produce?
High and extremely high pressure hoses up to ID 4", on flexible or rigid mandrels. Each deck carries 12 to 40 carriers loaded with several wires each, with rotation speeds up to 120 rpm.
What are the main figures of RKN braiders?
Configurations with 24, 36, 48 or 64 carriers, horngear speed up to 220 rpm, tensioning force adjustable up to 140 N and linear speed up to 5 m/min, with a PLC-controlled synchronised servo drive.
Does RKN supply standard catalogue machines?
No. RKN has no standard catalogue: each machine is engineered around the customer's hose, plant and output. To start, send your hose type, ID range, reinforcement and target output to info@rknhose.com.
Built to your specification
Every machine on this page was designed and built for a specific customer. Tell us your hose type, ID range, reinforcement and target output, and our engineers will propose a configuration for your production.
